What is an Integrated Solar Hot Water System?
Quick Answer: An integrated solar hot water system works by combining all the necessary components into one single compact unit. Unlike conventional solar hot water systems, which usually have a separate storage tank and solar collector, an integrated system brings these components together in one assembly.

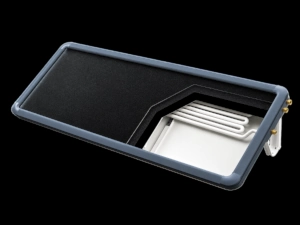

One example is the Sunpad solar hot water system, which incorporates a heat storage tank, heat exchanger pipes, insulation and supporting components into a low-profile unit designed for roof mounting.
How does an integrated solar hot water system work?
The heart of the system is the heat storage tank which contains 150 litres of water that acts as a heat transfer fluid. The Sunpad works by absorbing solar energy through a special coating on the surface of the tank to heat the fluid.
Rather than storing the household's domestic hot water directly, the heated fluid transfers heat to cold water as it passes through a continuous 19 metre long heat exchanger tube located in the tank.
When a tap is opened and hot water is drawn from the system, cold mains water flows through the stainless-steel heat exchanger tube. As it passes, the cold water absorbs heat from the surrounding transfer fluid before travelling to the hot water outlet and on to the point of use.
What are the main components of an integrated solar unit?
The Sunpad combines several components into a single compact unit:
- Solar collector and heat storage: The collector absorbs solar energy, heating the fluid held within the insulated tank.
- Heat exchanger: A stainless-steel heat exchanger transfers heat from the solar-heated fluid to the household water supply.
- Thermal insulation: A 50 mm layer of expanded polypropylene foam works to reduce heat loss and retain the energy collected during the day.
- Backup Heater: Built-in immersion heater just in case of a spell of cloudy weather.
How much hot water can an integrated system produce?
The Sunpad has a nominal heat-transfer fluid capacity of 150 litres. According to the manufacturer's specifications, it can provide up to 380 litres of hot water at 40°C, depending on operating conditions.
This figure represents the potential volume of water available after heating and mixing, rather than 380 litres stored at that temperature. The actual amount available will depend on sunshine, the temperature of the stored fluid, incoming cold-water temperature and household demand.
In southern Spain, where sunshine is plentiful for much of the year, a solar hot water system can provide a substantial proportion of a home's hot water requirements. Even on cloudy days an integrated system still works, however, several consecutive cloudy days will reduce the total heat available, making supplementary heating necessary.

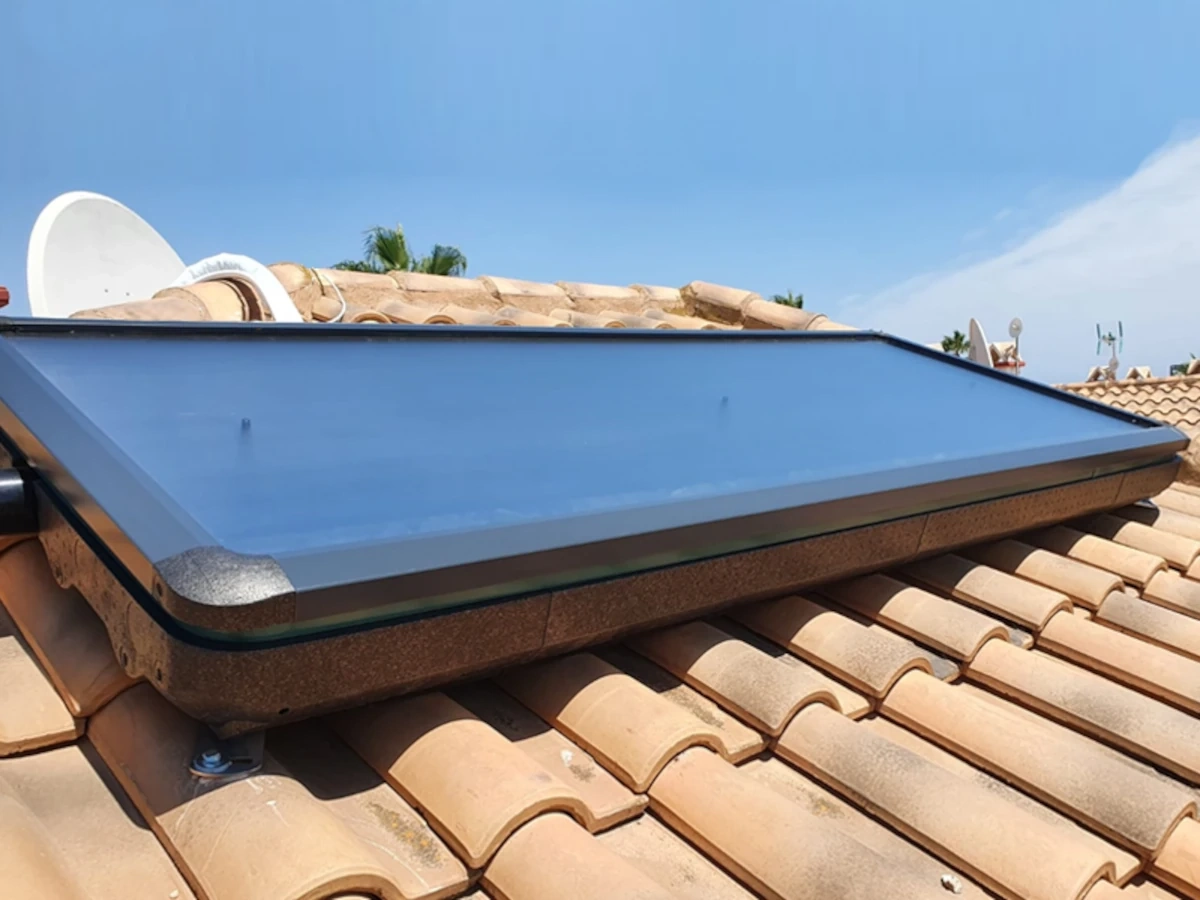

Installation and roof space
One of the main attractions of an integrated system is its compact design. This works by combining the collector and storage components into a single assembly, the Sunpad avoids the need to install a separate storage tank elsewhere in the property.
Its lightweight construction is designed to allow installation on either flat or pitched roofs. Nevertheless, the roof structure, mounting arrangement, waterproofing and local installation requirements should always be assessed before installation.
Is an integrated solar hot water system right for your home?
An integrated system may be worth considering where roof space is limited or where a compact, self-contained installation is preferred. Having the collector and storage components together can also simplify the overall system layout.
As with any solar hot water system, performance depends on the amount of sunshine available, the size of the household and its hot water consumption. The suitability of the installation will also depend on the roof, plumbing arrangement and provision for supplementary heating.
For homes in Alicante and Murcia, solar hot water can be an attractive way to reduce reliance on conventional water heating. The important consideration is choosing a system that matches the property's requirements and the household's daily hot water use.
The Sunpad's compact design and potential hot water output make it an interesting alternative to more conventional solar hot water arrangements, particularly where a simple, space-saving installation is desirable.
